2018 HYUNDAI WIA CNC 3 AXIS VERTICAL TURNING CENTER
Have one to sell?
ConditionUsed
1 available

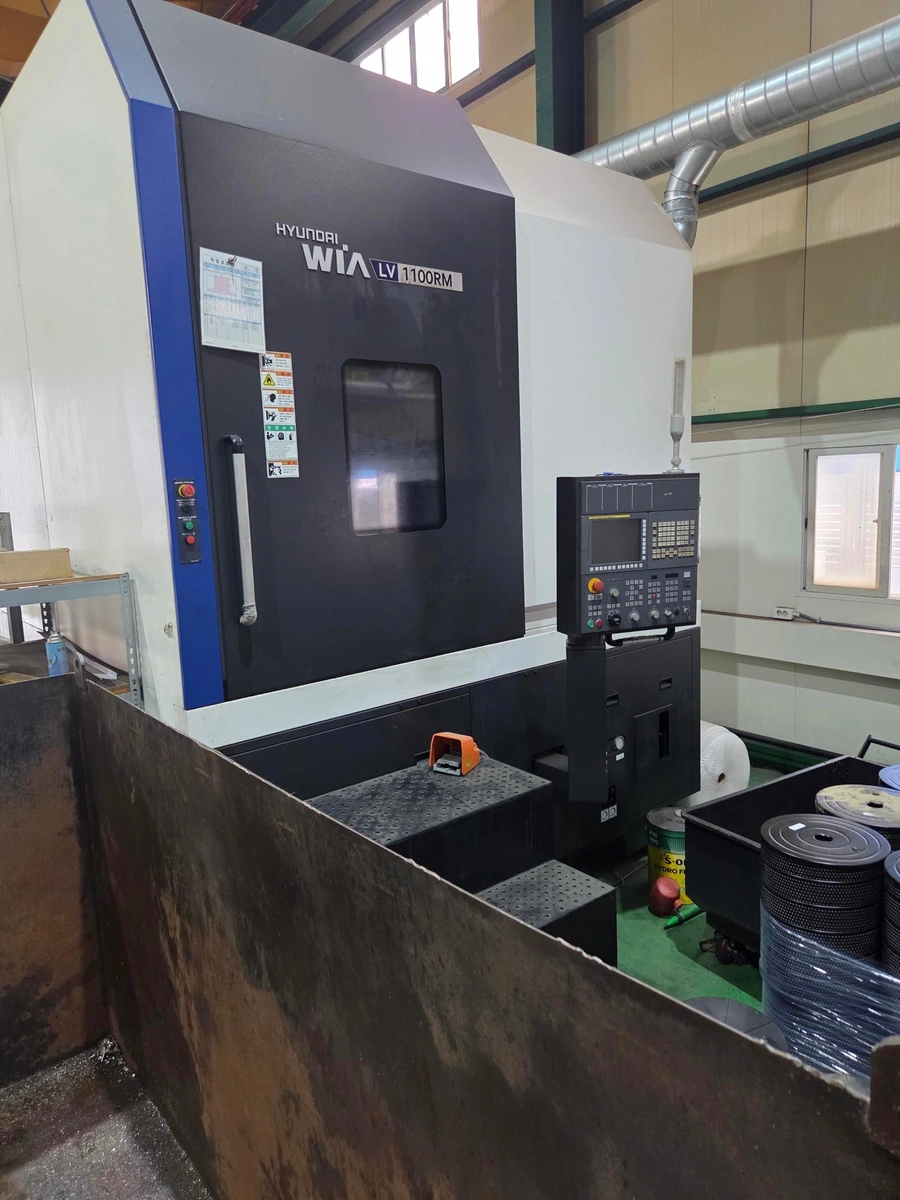

2018 Hyundai Wia LV 1100RM CNC vertical turning center with 32" table, 53.3" swing, 39.4" turning height, FANUC 32i-B control, 12-station turret, chip conveyor, tool setter, milling capabilities, rotary heads and 32" hydraulic chuck. Used.
FANUC 32I-B CNC COLOR CONTROL

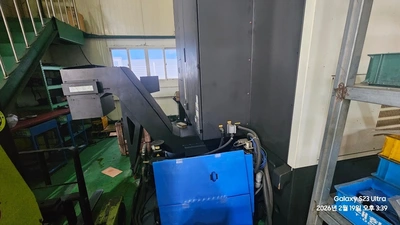

CHIP CONVEYOR
TOOL SETTER
(1) X ROTARY HEAD
(1) Z ROTARY HEAD
32" 3 - JAW HYDRAULIC CHUCK
2018 Hyundai Wia LV 1100RM CNC vertical turning center with 32" table, 53.3" swing, 39.4" turning height, FANUC 32i-B control, 12-station turret, chip conveyor, tool setter, milling capabilities, rotary heads and 32" hydraulic chuck. Used.
Imperial
| Table Diameter | 32" |
| Swing Diameter | 53.3" |
| Turning Height | 39.4" |
| Spindle Nose | 380 FLAT |
| Table Speed | 630 RPM |
| Main Motor | 87 hp |
| Number Of Ranges | 2 |
| X - Axis Travel | 24.4" |
| Z - Axis Travel | 39.4" |
| Rapid Traverse Rate - X | 945 ipm |
| Rapid Traverse Rate - Z | 945 in/min. |
| C - Axis Indexing | .001 DEGREES |
| Turret Configuration | 12 station |
| Machine Weight | 48,502 lb |
| Control | CNC (FANUC 32I-B CNC COLOR CONTROL) |
| Dimensions | 115" x 170.3" x 148.7" |
FANUC 32I-B CNC COLOR CONTROL
CHIP CONVEYOR
TOOL SETTER
(1) X ROTARY HEAD
(1) Z ROTARY HEAD
32" 3 - JAW HYDRAULIC CHUCK
