MAZAK NEXUS QTN 250II/1000 2 AXIS CNC UNIVERSAL LATHE
Have one to sell?
ConditionUsed
1 available

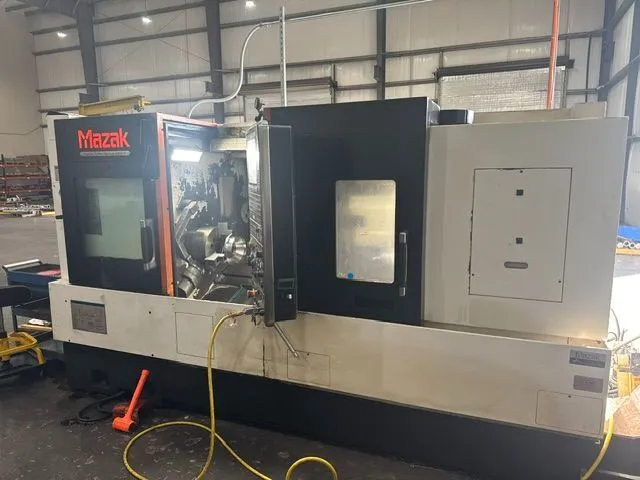

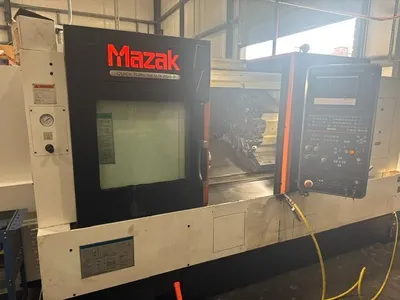

2012 Mazak Nexus QTN 250 II/1000 CNC Lathe available, featuring a 10" hydraulic chuck, 24.02" swing over bed, 38.733" machining length, and 4,000 RPM spindle. Equipped with MAZATROL MATRIX CNC control, chip conveyor, and all manuals.
MAZATROL MATRIX CNC CONTROL
EIA/ISO INPUT FUNCTION
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
HYDRAULIC PRESSURE INTERLOCK
AUTO TOOL EYE
TRANSFORMER
CHIP CONVEYOR SIDE DISCHARGE
MAZATROL MATRIX CNC CONTROL
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
10" 3-JAW HYDRAULIC CHUCK
2012 Mazak Nexus QTN 250 II/1000 CNC Lathe available, featuring a 10" hydraulic chuck, 24.02" swing over bed, 38.733" machining length, and 4,000 RPM spindle. Equipped with MAZATROL MATRIX CNC control, chip conveyor, and all manuals.
Imperial
| Swing Over Bed | 24.02" |
| Machining Length | 38.733" |
| Turning Diameter, Shaft Diameter | 13.78" |
| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.46" |
| Spindle Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 4,000 RPM |
| Spindle Horsepower 1 | 35 hp |
| X1 - Axis Travel | 7.5" |
| Z1 - Axis Travel | 40.25" |
| Rapid Traverse Rate - X1 | 1,181 in/min. |
| Rapid Traverse Rate - Z1 | 1,299 in/min. |
| Turret Configuration 1 | 12 |
| Tailstock Taper | MT 4 |
| Programmable Tailstock | YES |
| Tailstock Travel | 39.62" |
| # Axis | 2 |
| Bar Capacity | 3" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC (MAZAK MAZATROL MATRIX CNC COLOR CONTROL) |
| Weight | 0.00 |
MAZATROL MATRIX CNC CONTROL
EIA/ISO INPUT FUNCTION
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
HYDRAULIC PRESSURE INTERLOCK
AUTO TOOL EYE
TRANSFORMER
CHIP CONVEYOR SIDE DISCHARGE
MAZATROL MATRIX CNC CONTROL
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
10" 3-JAW HYDRAULIC CHUCK
