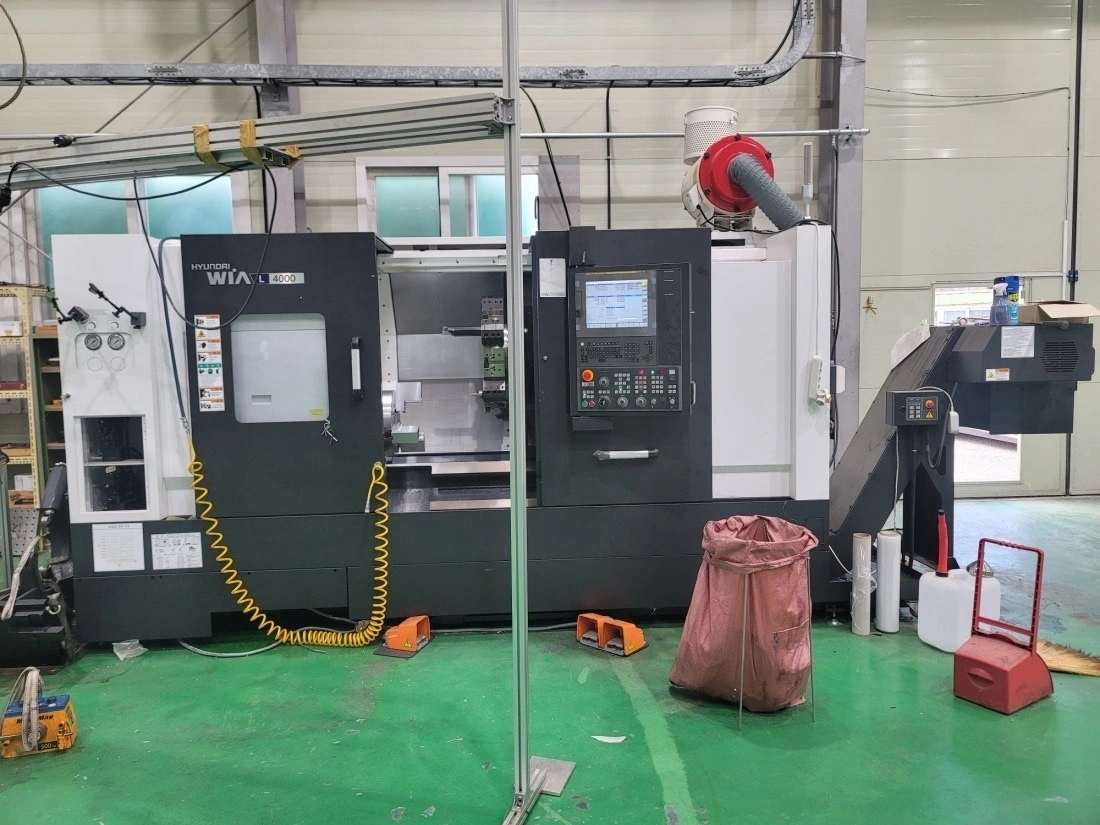

HYUNDAI WIA L4000 CNC BOX WAY UNIVERSAL TURNING CENTER
Have one to sell?
ConditionUsed
1 available
2024 HYUNDAI WIA L4000 CNC Turning Center, 2-Axis, used, features 30.7" swing, 41.1" machining length, 2,000 RPM spindle, 35 hp, with FANUC i Series, chip conveyor, 15" chuck, tool setter. Heavy-duty box way.

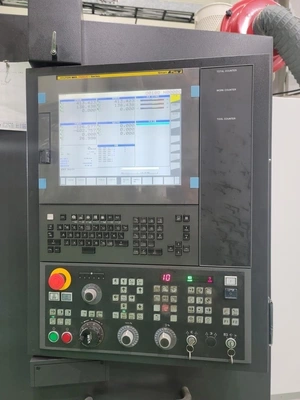

FANUC I SMART PLUS CNC COLOR CONTROL

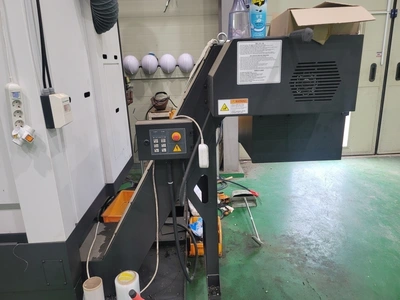

CHIP CONVEYOR

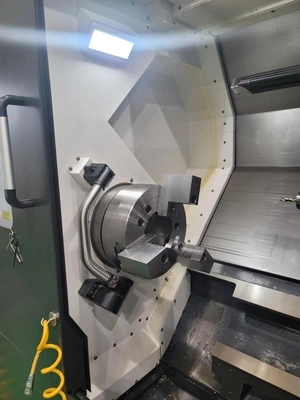

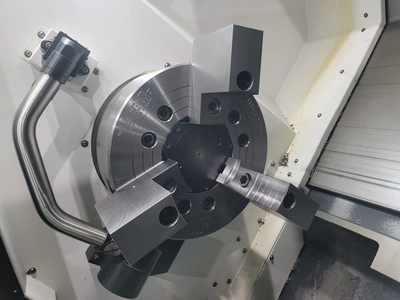

15" 3-JAW HYDRAULIC CHUCK
TOOL SETTER
HEAVY DUTY BOX WAY CONSTRUCTION

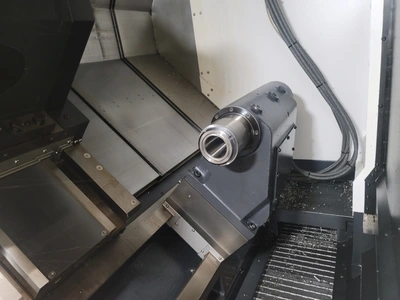

PROGRAMMABLE TAILSTOCK
CHUCK PRESSURE FAILURE DETECTOR

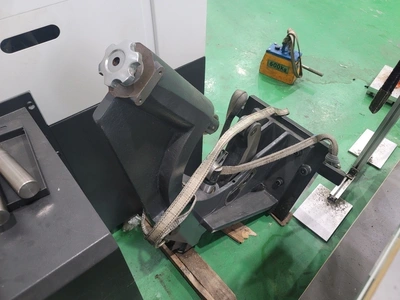

MANUAL STEADY REST
LESS THAN 300 TURNING HOURS
2024 HYUNDAI WIA L4000 CNC Turning Center, 2-Axis, used, features 30.7" swing, 41.1" machining length, 2,000 RPM spindle, 35 hp, with FANUC i Series, chip conveyor, 15" chuck, tool setter. Heavy-duty box way.
Imperial
| Swing Over Bed | 30.7" |
| Machining Length | 41.1" |
| Turning Diameter, Shaft Diameter | 22.4" |
| Chuck Size 1 | 18" |
| Spindle Nose 1 | A1 - 11 |
| Spindle Bore Diameter 1 | 5.2" |
| Spindle Bar Capacity 1 | 4.6" |
| Spindle Speeds 1 | 2,000 RPM |
| Spindle Horsepower 1 | 35 hp |
| X1 - Axis Travel | 12.8" |
| Z1 - Axis Travel | 41.06" |
| Rapid Traverse Rate - X1 | 788 in/min. |
| Rapid Traverse Rate - Z1 | 985 in/min. |
| Spindle Torque | 1754 |
| Gear Ranges | 2 |
| Turret Configuration 1 | 10 |
| Tailstock Quill Diameter | 4.7" |
| Tailstock Taper | MT #5 |
| Tailstock Quill Travel | 4.7" |
| Programmable Tailstock | YES |
| Tailstock Travel | 37.3" |
| # Axis | 2 |
| Bar Capacity | 4.6" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC (FANUC I SMART PLUS CNC COLOR CONTROL) |
| Weight | 18,700 |
FANUC I SMART PLUS CNC COLOR CONTROL
CHIP CONVEYOR
15" 3-JAW HYDRAULIC CHUCK
TOOL SETTER
HEAVY DUTY BOX WAY CONSTRUCTION
PROGRAMMABLE TAILSTOCK
CHUCK PRESSURE FAILURE DETECTOR
MANUAL STEADY REST
LESS THAN 300 TURNING HOURS
