2013 DOOSAN PUMA 480 CNC UNIVERSAL 2 AXIS LATHE
Have one to sell?
ConditionUsed
1 available

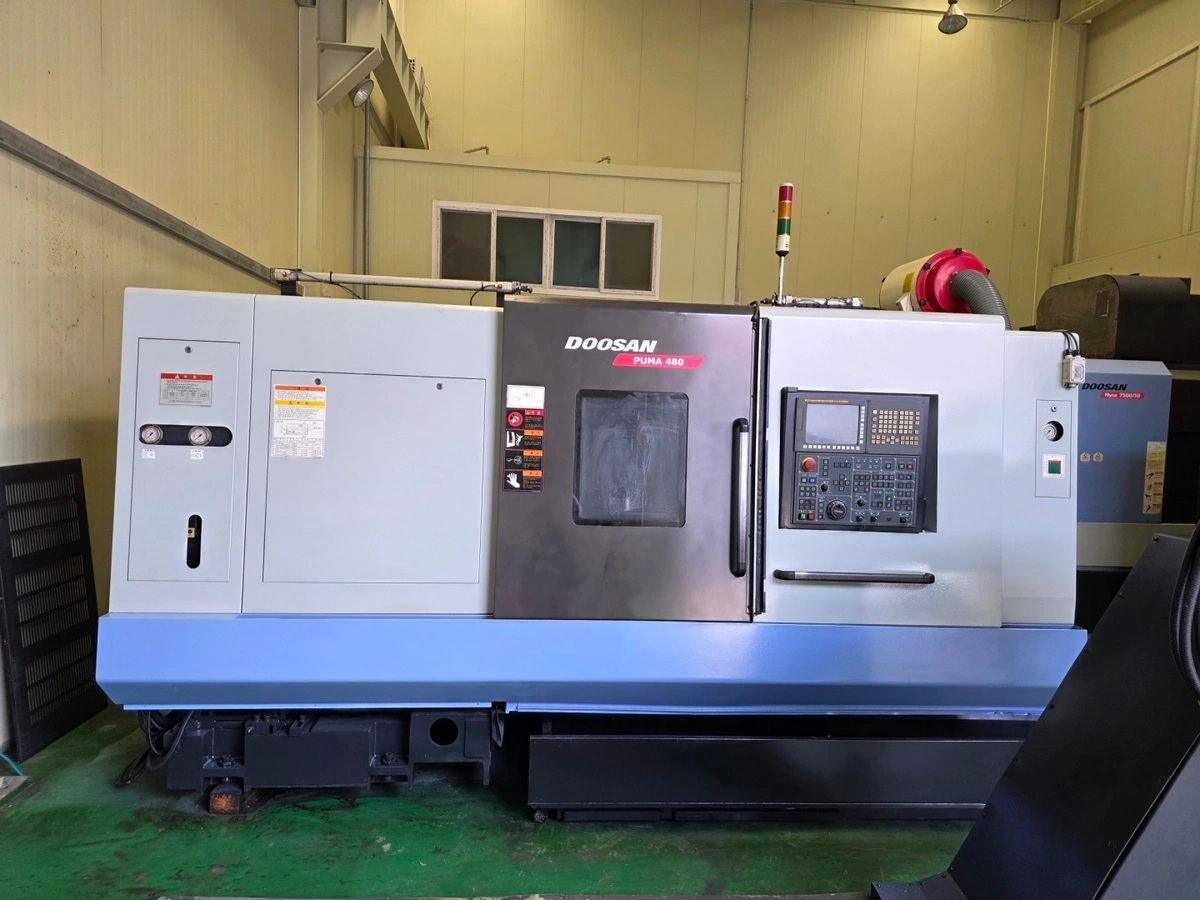

For sale: Used DOOSAN PUMA 480 CNC lathe, 2-axis, year 2013. Features a 35.5" swing over bed, 42" machining length, and 60 hp spindle. Equipped with FANUC 32I control, chip conveyor, 7.1" spindle bore and mist collector. Ideal for precise machining needs.

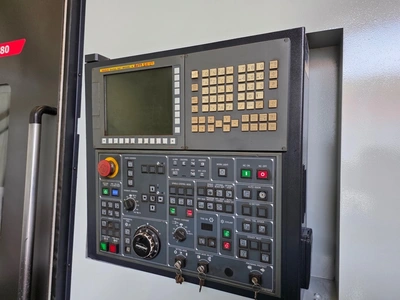

FANUC 32I CNC CONTROL

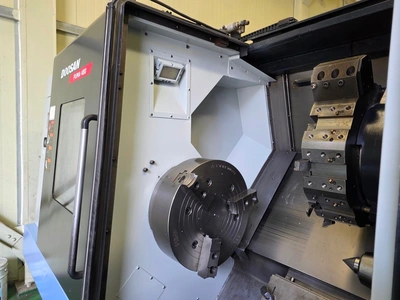

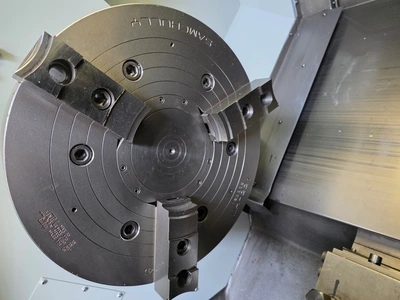

21" 3 JAW HYDRAULIC CHUCK
6.5 BAR CAPACIRTY
CHIP CONVEYOR

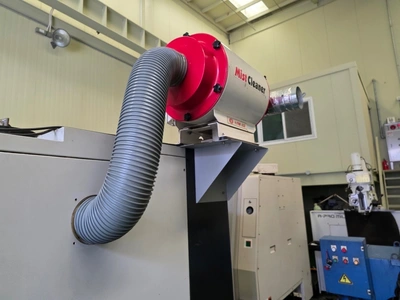

MIST COLLECTOR
For sale: Used DOOSAN PUMA 480 CNC lathe, 2-axis, year 2013. Features a 35.5" swing over bed, 42" machining length, and 60 hp spindle. Equipped with FANUC 32I control, chip conveyor, 7.1" spindle bore and mist collector. Ideal for precise machining needs.
Imperial
| Swing Over Bed | 35.5" |
| Machining Length | 42" |
| Distance Between Centers | 44.6" |
| Turning Diameter, Shaft Diameter | 25.54" |
| Chuck Size 1 | 21" |
| Spindle Nose 1 | A2-15 |
| Spindle Bore Diameter 1 | 7.12" |
| Spindle Bar Capacity 1 | 6.5" |
| Spindle Speeds 1 | 1,500 RPM |
| Spindle Horsepower 1 | 60 hp |
| X1 - Axis Travel | 14.25" |
| Z1 - Axis Travel | 43.5" |
| Rapid Traverse Rate - X1 | 550 in/min. |
| Rapid Traverse Rate - Z1 | 710 in/min. |
| Spindle Torque | 0 |
| Gear Ranges | 2 |

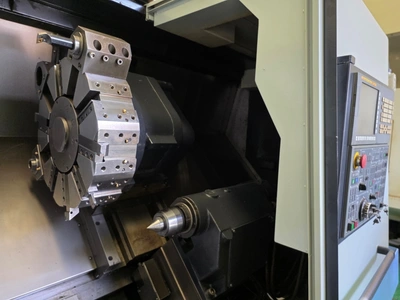

| Turret Configuration 1 | 10 |
| Tailstock Quill Diameter | 4.7" |
| Tailstock Taper | MT #5 |
| Tailstock Quill Travel | 4.7" |
| Programmable Tailstock | YES |
| Tailstock Travel | 39.4" |
| # Axis | 2 |
| Bar Capacity | 6.5" |
| Control | CNC (FANUC 32i-A CNC COLOR CONTROL) |
FANUC 32I CNC CONTROL
21" 3 JAW HYDRAULIC CHUCK
6.5 BAR CAPACIRTY
CHIP CONVEYOR
MIST COLLECTOR
