2022 HYUNDAI HD 3100 UNIVERSAL CNC 2 AXIS LATHE
Have one to sell?
ConditionUsed
1 available

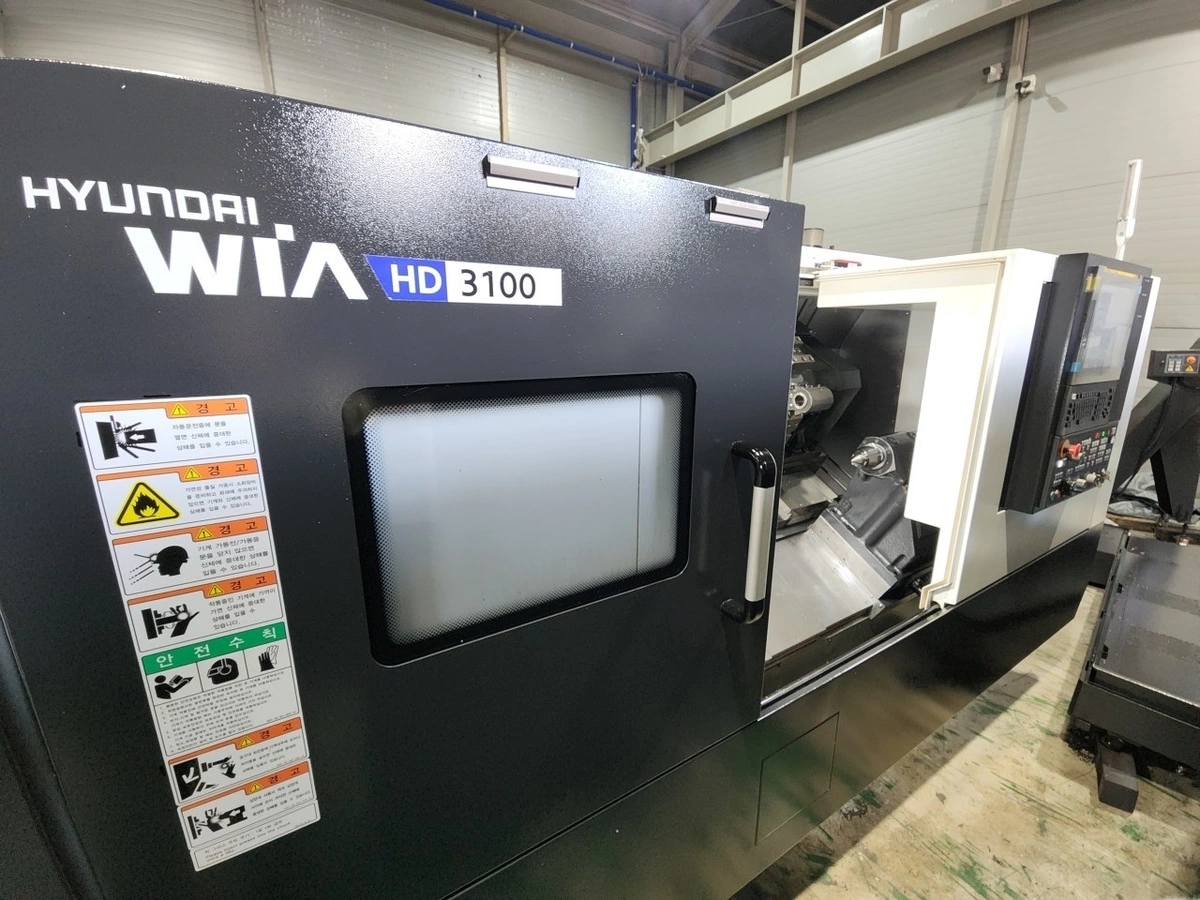

2022 HYUNDAI WIA HD 3100 CNC Lathe: 2/3-Axis, used. Specs: 29.5" swing, 30.7" machining length, 19.7" turning diameter, 12" chuck. FANUC CNC, tool setter, chip conveyor included. Ideal for high-precision, efficient machining tasks.
FANUC SERIES I SMART PLUS CNC CONTROL

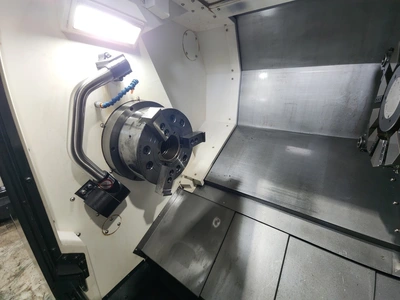

12" 3 JAW HYDRAULIC CHUCK
4.0" BAR CAPACITY
TOOL SETTER
CHIP CONVEYOR
2022 HYUNDAI WIA HD 3100 CNC Lathe: 2/3-Axis, used. Specs: 29.5" swing, 30.7" machining length, 19.7" turning diameter, 12" chuck. FANUC CNC, tool setter, chip conveyor included. Ideal for high-precision, efficient machining tasks.
Imperial
| Swing Over Bed | 29.5" |
| Machining Length | 30.7" |
| Turning Diameter, Shaft Diameter | 19.7" |
| Chuck Size 1 | 12" |
| Spindle Nose 1 | A2-11 |
| Spindle Bore Diameter 1 | 4.5" |
| Spindle Bar Capacity 1 | 4" |
| Spindle Speeds 1 | 2,800 RPM |
| Spindle Horsepower 1 | 35 hp |
| X1 - Axis Travel | 10.4" |
| Z1 - Axis Travel | 32.7" |
| Rapid Traverse Rate - X1 | 945 in/min. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. |

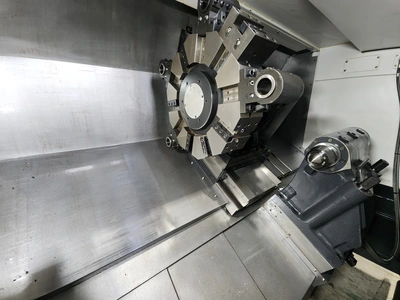

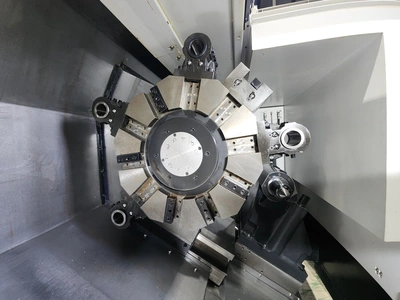

| Turret Configuration 1 | 10 |
| Tailstock Quill Diameter | 3.9" |
| Tailstock Taper | MT#5 |
| Tailstock Quill Travel | 4.7" |
| Programmable Tailstock | YES |
| Tailstock Travel | 32.7" |
| Bar Capacity | 4" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
| Control | CNC (FANUC SERIES I PLUS SMART CNC COLOR CONTROL) |
| Dimensions | 153" x 71" x 73" |
| Weight | 13,228 LBS |
FANUC SERIES I SMART PLUS CNC CONTROL
12" 3 JAW HYDRAULIC CHUCK
4.0" BAR CAPACITY
TOOL SETTER
CHIP CONVEYOR
