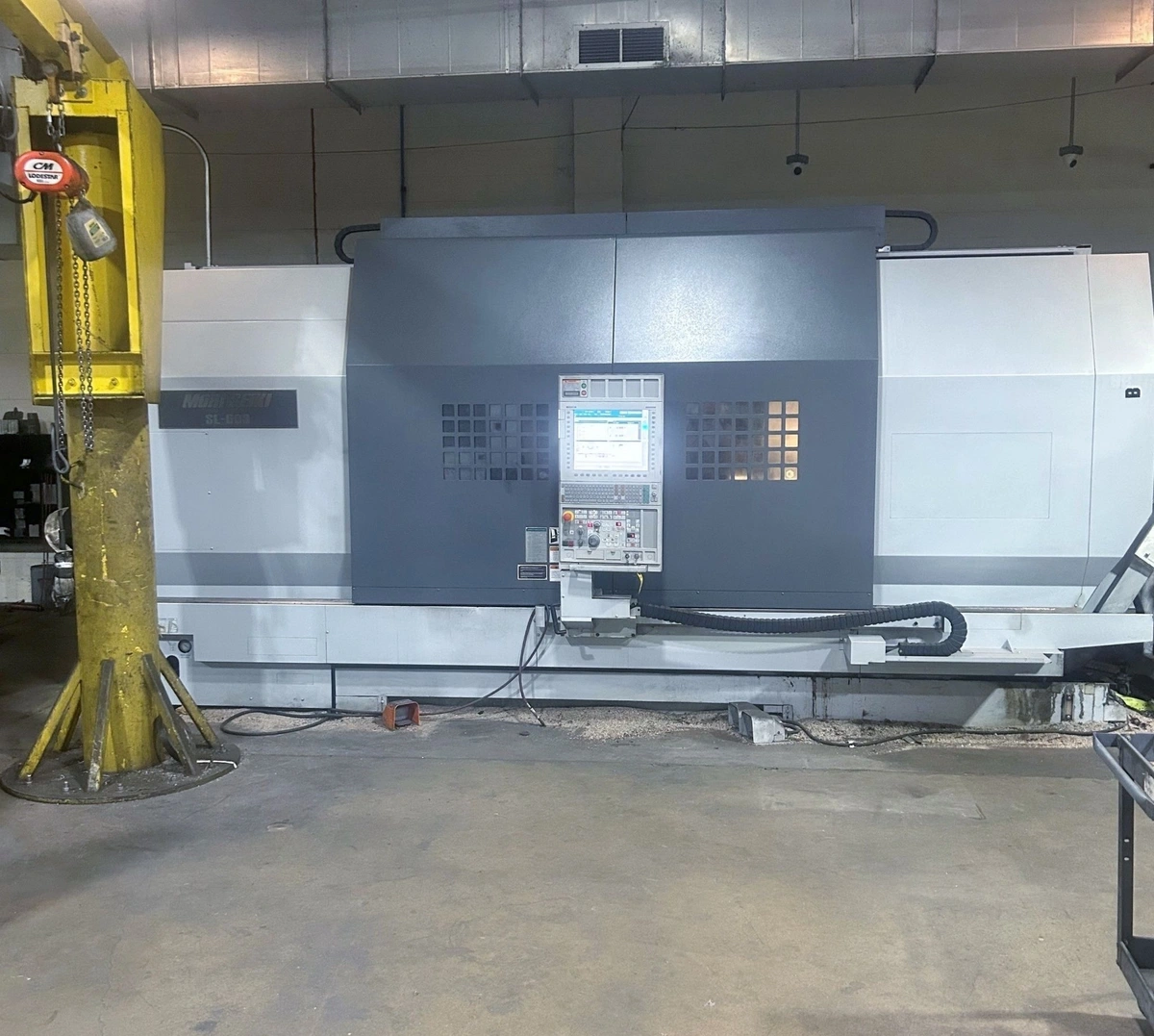

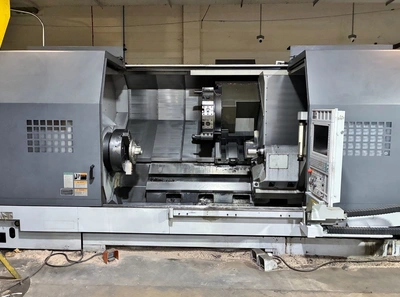

Used 2011 MORI SEIKI SL-603B/2000 | Lathes CNC, 2-Axis & 3-Axis
Have one to sell?
ConditionUsed
1 available

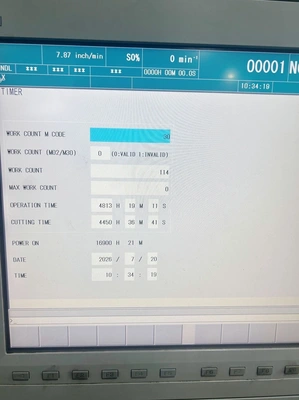

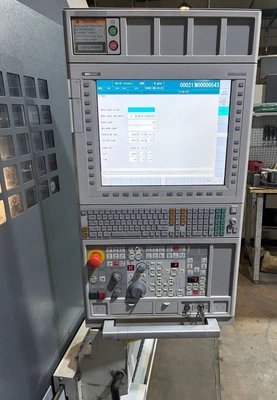

FANUC 21ITB CNC CONTROL

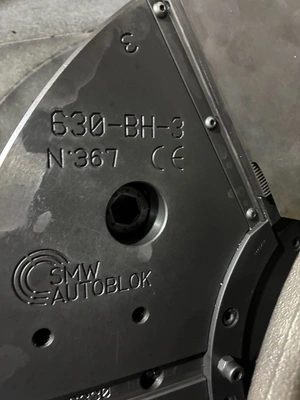

25", 3-JAW SMW AUTOBLOK (630-BH-3) HYDRAULIC CHUCK

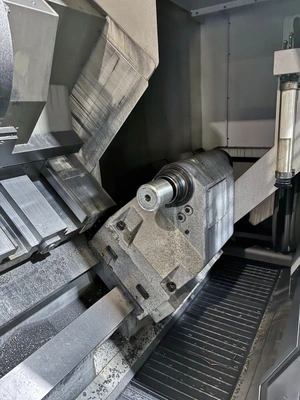

TAILSTOCK
CHIP CONVEYOR
Imperial
| Swing Over Bed | 39.1" |
| Machining Length | 78.7" |
| Distance Between Centers | 90.6" |
| Turning Diameter, Shaft Diameter | 354.29" |
| Chuck Size 1 | 25" |
| Spindle Nose 1 | A2-15 |
| Spindle Bore Diameter 1 | 7.3" |
| Spindle Bar Capacity 1 | 6.5" |
| Spindle Speeds 1 | 1,500 RPM |
| Spindle Horsepower 1 | 50 hp |
| X1 - Axis Travel | 19.1" |
| Z1 - Axis Travel | 84.6" |
| Rapid Traverse Rate - X1 | 787 in/min. |
| Rapid Traverse Rate - Z1 | 787 in/min. |
| Gear Ranges | 2 |
| Turret Configuration 1 | 12 |
| Tailstock Quill Diameter | 5.9" |
| Tailstock Quill Travel | 5.9" |
| Programmable Tailstock | YES |
| Tailstock Travel | 82.7" |
| Bar Capacity | 6.5" |
| Tailstock | 'Yes' |
| Live Tooling | 'No' |
| Sub Spindle | 'No' |
FANUC 21ITB CNC CONTROL
25", 3-JAW SMW AUTOBLOK (630-BH-3) HYDRAULIC CHUCK
TAILSTOCK
CHIP CONVEYOR
