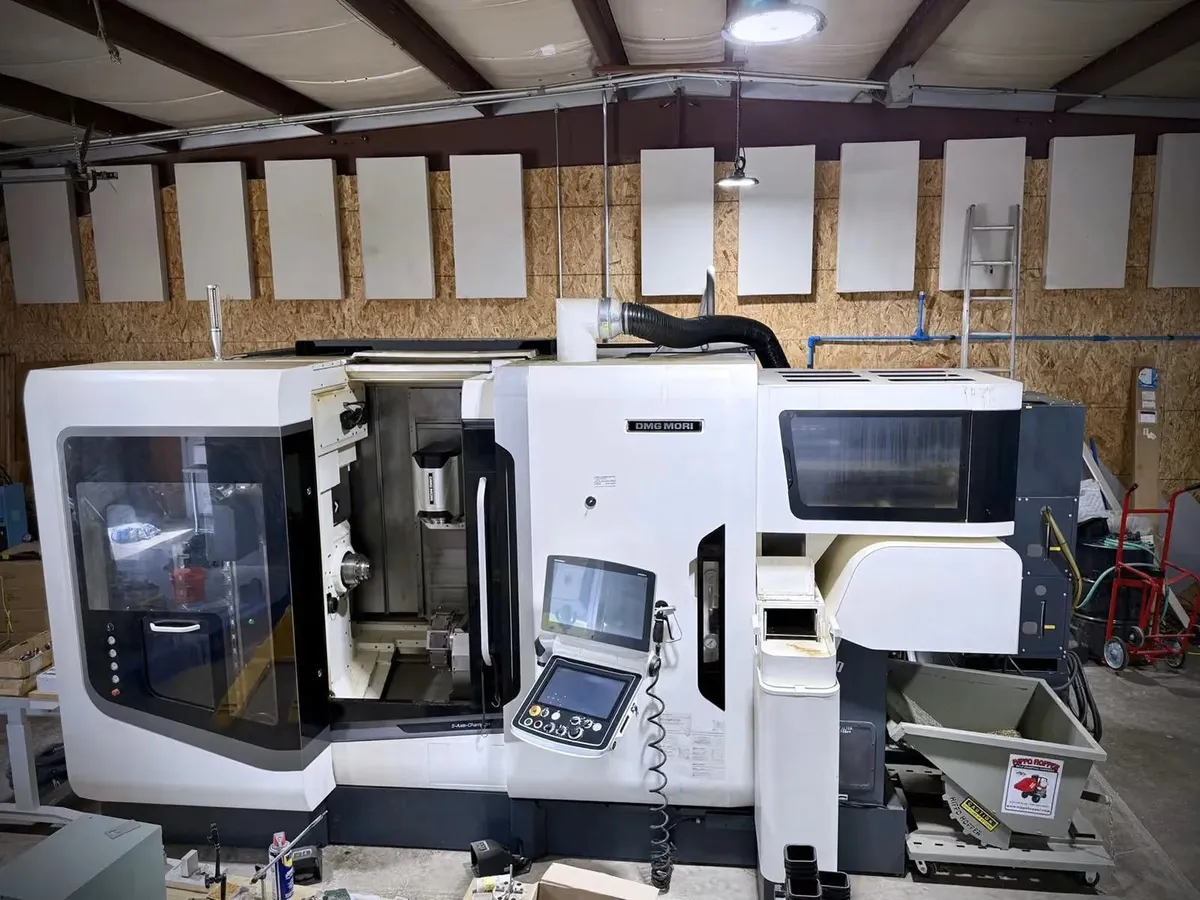

2019 DMG MORI NTX 1000SZM CNC MULTI-TASKING CENTER
Have one to sell?
ConditionUsed
1 available

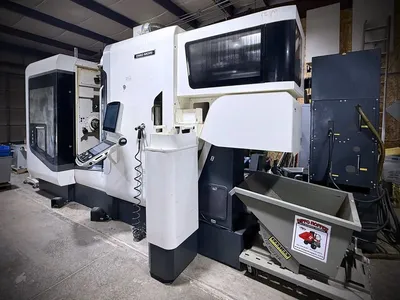

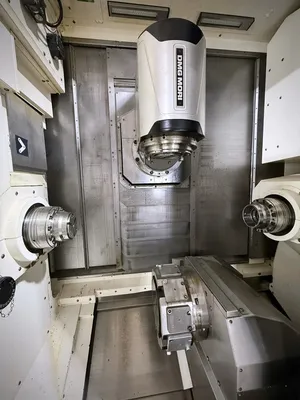

The 2019 DMG MORI NTX 1000SZMCNC Multi-Tasking Center offers versatile performance with dual spindles, 10-station turret, and high-speed milling spindle on B - axis head. Features CELOS/Fanuc control, machine tool presetter and gantry unload system with parts conveyor, Weight: 19,800 lbs.
CELOS FANUC 31I - B5 CNC COLOR CONTROLCON
TOOL PRESETTER FOR TOOL SPINDLE
CHIP CONVEYOR

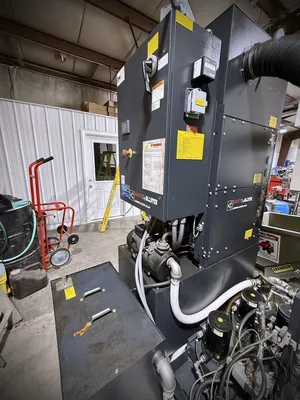

HIGH PRESSURE COOLANT SYSTEM THRU B AXIS INTERFACE / CHIP BLASTER R-50
ETHERNET I / P
BAR FEED INTERFACE
WORKPIECE UNLOADER
GANTRY UNLOAD SYSTEM PARTS REMOVAL
PARTS CONVEYOR
LOWER TURRET MILLING CAPABILITY
AIRBLOW FOR CHUCK
MIST COLLECTOR INTERFACE
IN MACHINE PART PROBING
TECHNOLOGY SOFTWARE CYCLE 5 AXIS SIMULTANEOUS MACHINING
MANUAL PULSE GENERATOR
MULTI DRY FILTER
SIGNAL LAMP 4 COLORS
The 2019 DMG MORI NTX 1000SZMCNC Multi-Tasking Center offers versatile performance with dual spindles, 10-station turret, and high-speed milling spindle on B - axis head. Features CELOS/Fanuc control, machine tool presetter and gantry unload system with parts conveyor, Weight: 19,800 lbs.
Imperial
| Swing Over Bed | 17.7" |
| Turning Diameter | 16.9" |
| Turning Length | 31.4" |
| Distance Between Spindles | 41.3" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2 - 6 |
| Spindle Bore Diameter 1 | 2.9" |
| Bar Capacity 1 | 2.5" |
| Spindle Speeds 1 | 5,000 RPM |
| Spindle Horsepower 1 | 15 hp |
| Chuck Size 2 | 8" |
| Spindle Nose 2 | FLAT |
| Spindle Bore Diameter 2 | 1.9" |
| Bar Capacity 2 | 1.5" |
| Spindle Speeds 2 | 6,000 RPM |
| Spindle Horsepower 2 | 10 hp |
| B - Axis Head Travel | + - 120 DEGREES |
| B - Axis Head Indexing | 0.0001 |
| B - Axis Milling Spindle Taper | CAPTO C5 |
| B - Axis Milling Spindle Speed | 20,000 RPM |
| B - Axis Milling Spindle Horse Power | 12 hp |

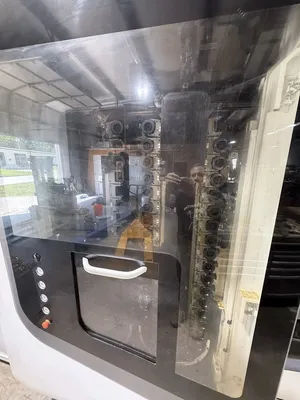

| ATC For Milling Spindle | 76 |
| Tool Diameter | 2.7", 5.1" |
| Tool Length | 8.2" |
| Tool Weight | 11 lb |
| X1 - Axis Travel | 15" |
| X2 - Axis Travel | 6.1" |
| Z1 - Axis Travel | 24.2" |
| Z2 - Axis Travel | 24" |
| Y1 - Axis Travel | 8.2" |
| C - Axis Indexing 1 | 0.0001 |
| C - Axis Indexing 2 | 0.0001 |
| Rapid Traverse Rate - X1 | 1574 ipm |
| Rapid Traverse Rate - X2 | 787 ipm |
| Rapid Traverse Rate - Z1 | 1968 ipm |
| Rapid Traverse Rate - Z2 | 1417 ipm |
| Rapid Traverse Rate - Y1 | 1574 ipm |

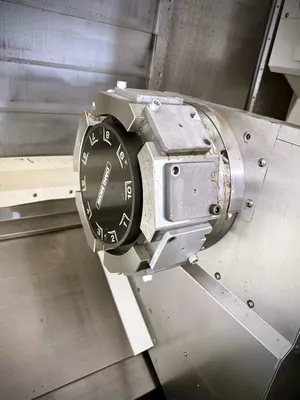

| Turret Tool Positions 1 | 10 station |
| Turret Rotary Tool Speeds 1 | 10,000 RPM |
| Turret Rotary Tool Horse Power 1 | 6.2 hp |
| Machine Weight | 19,800 lb |
| Control | CNC (CELOS W/ FANUC 31I-B5 CNC COLOR CONTROL) |
CELOS FANUC 31I - B5 CNC COLOR CONTROLCON
TOOL PRESETTER FOR TOOL SPINDLE
CHIP CONVEYOR
HIGH PRESSURE COOLANT SYSTEM THRU B AXIS INTERFACE / CHIP BLASTER R-50
ETHERNET I / P
BAR FEED INTERFACE
WORKPIECE UNLOADER
GANTRY UNLOAD SYSTEM PARTS REMOVAL
PARTS CONVEYOR
LOWER TURRET MILLING CAPABILITY
AIRBLOW FOR CHUCK
MIST COLLECTOR INTERFACE
IN MACHINE PART PROBING
TECHNOLOGY SOFTWARE CYCLE 5 AXIS SIMULTANEOUS MACHINING
MANUAL PULSE GENERATOR
MULTI DRY FILTER
SIGNAL LAMP 4 COLORS
