2023 DOOSAN MYNX 7500/50II CNC VERTICAL MACHINING CENTER

2023 DOOSAN MYNX 7500/50II CNC VERTICAL MACHINING CENTER

Have one to sell?
(847) 669 9781
mike@usedcncllc.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Machining Centers
Manufacturer:
DN SOLUTION
Model:
MYNX 7500/50 II
Year:
2023
Stock #:
10326
Status:
For Sale
Serial #:
MV0051-001740

Description

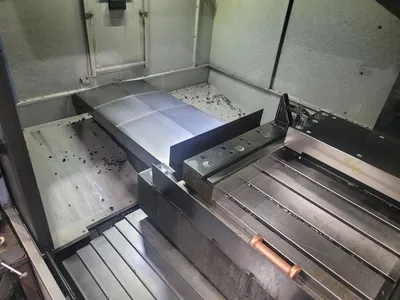

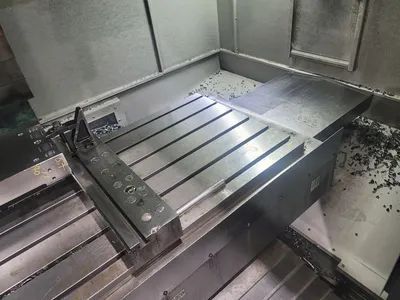

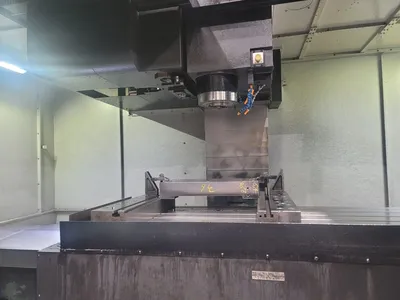

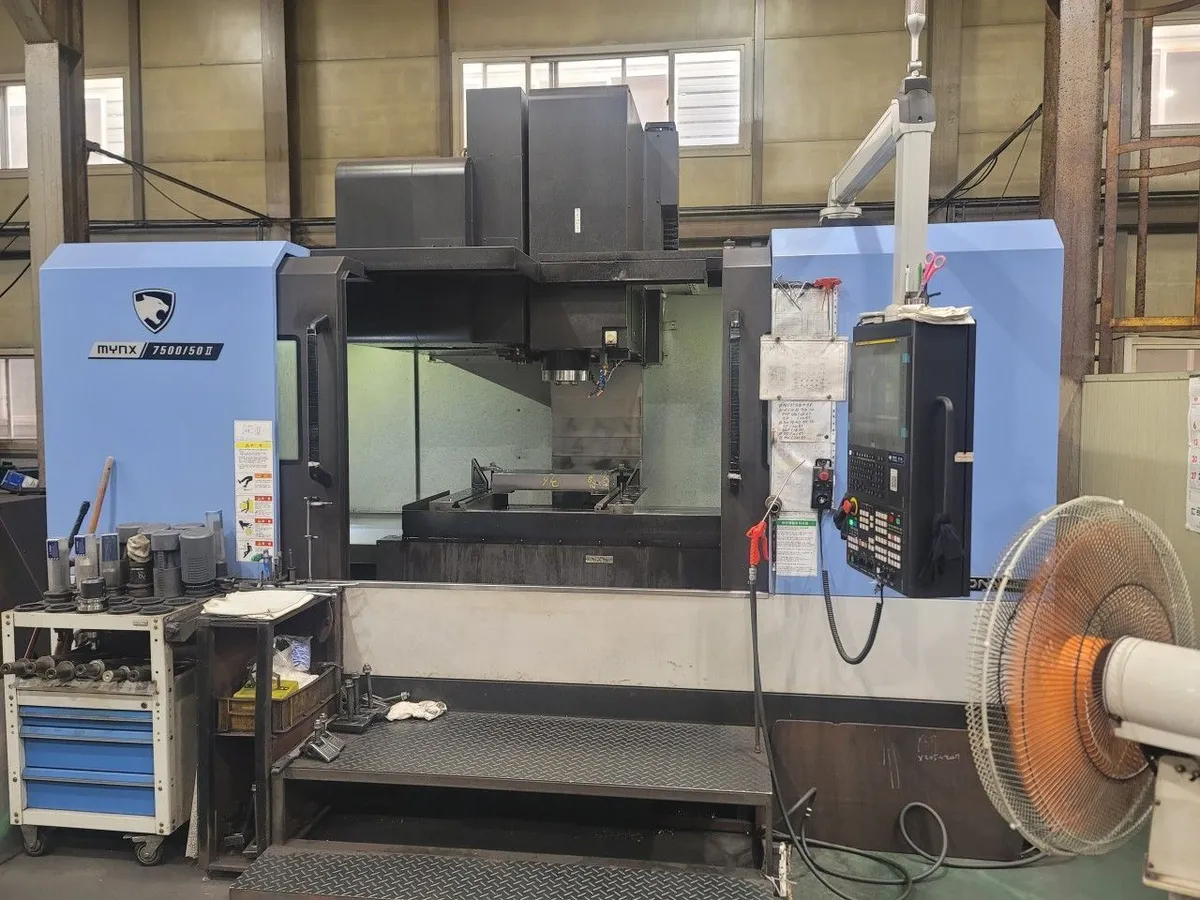

2023 DOOSAN MYNX 7500/50II CNC Vertical Machining Center, equipped with Fanuc Series I Control, thru spindle coolant, and chip conveyor. Features a 60" x 29.5" table, box ways, 6,000 RPM spindle, and 40 position ATC. Ideal for high precision tasks.

Number Of Tables / Pallets11
Table-L63"1,600.2 mm
Table-W29.5"749.3 mm
Weight on Table2,011 lb912.2 kg
Spindle Nose to Table Top7.9" ~ 32.4"7.9" ~ 32.4"
X - Axis Travel60"1,524 mm
Y - Axis Travel30.3"769.62 mm
Z - Axis Travel24.6"624.84 mm
Rapid Traverse Rate - X1,182 in/min.30 m/min.
Rapid Traverse Rate - Y1,182 in/min.30 m/min.
Rapid Traverse Rate - Z945 in/min.24 m/min.
Spindle Speed6,000 RPM6,000 RPM
Spindle Taper5050
Number of Gear Ranges22
Main Motor30 hp22.4 kW
Automatic Tool Changer4040
Tool Diameter4.9", 8.7"4.9", 8.7"
Tool Length13.8"350.52 mm
Tool Weight44 lb20 kg
Machine Weight29,800 lb13,517.1 kg
Automatic Tool Changer2424

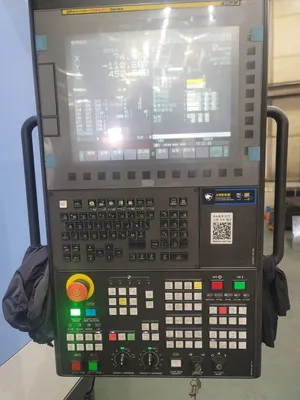

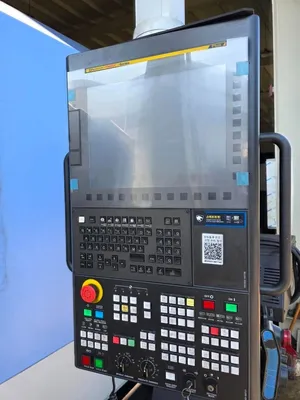

ControlCNC (FANUC SERIES I PLUS CNC COLOR CONTROL)CNC (FANUC SERIES I PLUS CNC COLOR CONTROL)

DOOSAN FANUC SERIES I CNC CONTROL

AICC II 200 BLOCKS
THRU SPINDLE COOLANT
40 ATC
CHIP CONVEYOR
RIGID TAPPING
AUTO POWER OFF
PORTABLE HAND HELD MPG
15" COLOR CRT
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE CHILLER
DOOSAN TOOL LOAD MONITORING SYSTEM
400 PAIRS TOOL OFFSETS
EMBEDDED ETHERNET FUNCTION
2MB PROGRAM STORAGE / 5120 METERS
DOOSAN EASY OPERATING SYSTEM

Overview

Type:
Vertical Machining Centers
Manufacturer:
DN SOLUTION
Model:
MYNX 7500/50 II
Year:
2023
Stock #:
10326
Status:
For Sale
Serial #:
MV0051-001740

Description

2023 DOOSAN MYNX 7500/50II CNC Vertical Machining Center, equipped with Fanuc Series I Control, thru spindle coolant, and chip conveyor. Features a 60" x 29.5" table, box ways, 6,000 RPM spindle, and 40 position ATC. Ideal for high precision tasks.

Specifications

Imperial

Number Of Tables / Pallets1
Table-L63"
Table-W29.5"
Weight on Table2,011 lb
Spindle Nose to Table Top7.9" ~ 32.4"
X - Axis Travel60"
Y - Axis Travel30.3"
Z - Axis Travel24.6"
Rapid Traverse Rate - X1,182 in/min.
Rapid Traverse Rate - Y1,182 in/min.
Rapid Traverse Rate - Z945 in/min.
Spindle Speed6,000 RPM
Spindle Taper50
Number of Gear Ranges2
Main Motor30 hp
Automatic Tool Changer40
Tool Diameter4.9", 8.7"
Tool Length13.8"
Tool Weight44 lb
Machine Weight29,800 lb
Automatic Tool Changer24
ControlCNC (FANUC SERIES I PLUS CNC COLOR CONTROL)

Equipped With

DOOSAN FANUC SERIES I CNC CONTROL

AICC II 200 BLOCKS
THRU SPINDLE COOLANT
40 ATC
CHIP CONVEYOR
RIGID TAPPING
AUTO POWER OFF
PORTABLE HAND HELD MPG
15" COLOR CRT
BIG PLUS SPINDLE
AIR BLOWER
SPINDLE CHILLER
DOOSAN TOOL LOAD MONITORING SYSTEM
400 PAIRS TOOL OFFSETS
EMBEDDED ETHERNET FUNCTION
2MB PROGRAM STORAGE / 5120 METERS
DOOSAN EASY OPERATING SYSTEM
