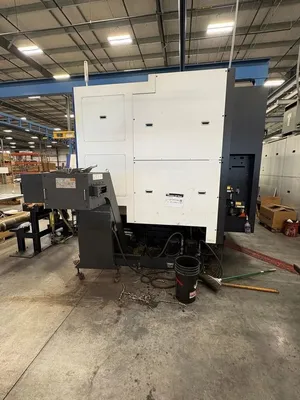

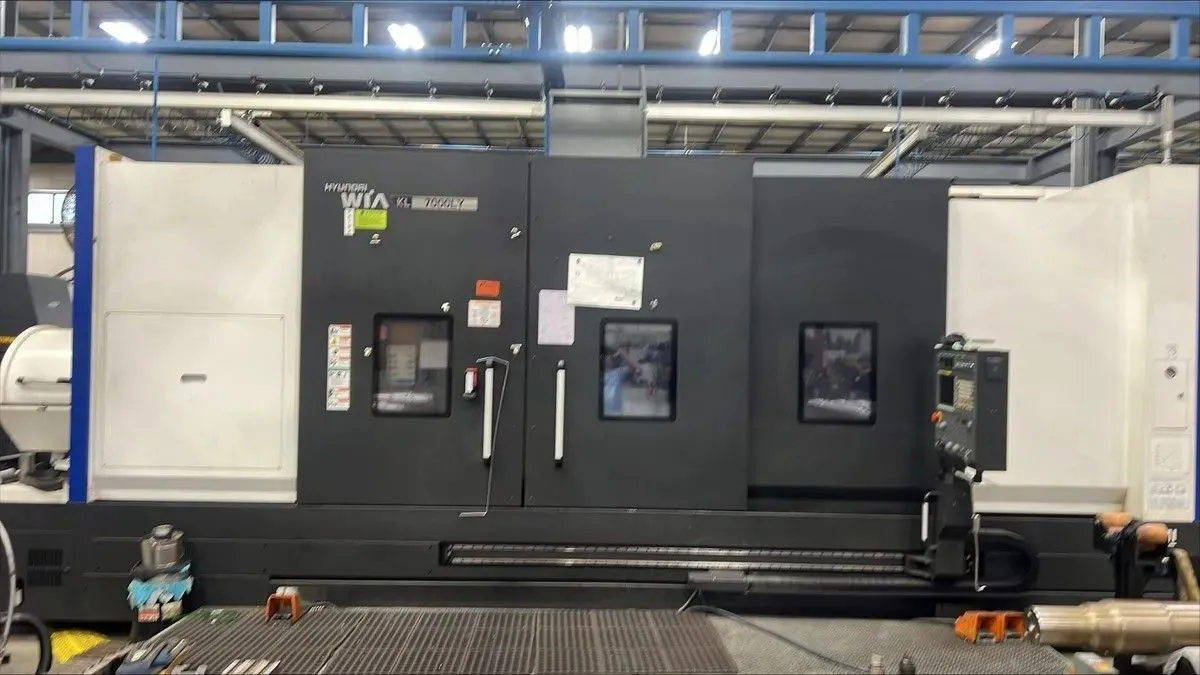

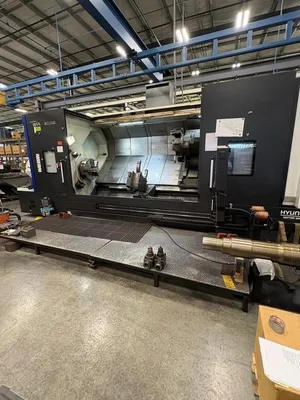

HYUNDAI WIA KL7000LY/3000 CNC MULTI-TASKING TURNING CENTER WITH MILLING & Y AXIS
Have one to sell?
ConditionUsed
1 available
HYUNDAI WIA KL7000LY/3000 CNC Multi-Tasking Turning Center, Year: 2022, Used. Features milling, Y-Axis, 47.2" swing, 36.2" turn diameter, 128" turn length, 60 hp, 1,500 RPM spindle, 4 milling holders, FANUC 31i-B CNC. Machine weight: 54,013 lb.

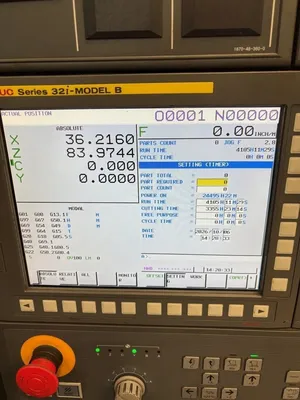

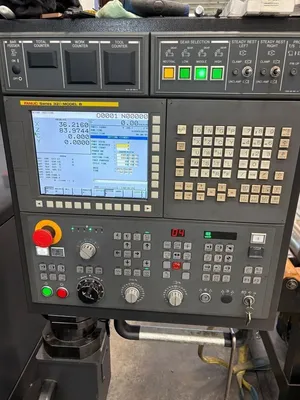

FANUC 31i-B CNC CONTROLLER
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
PROBE INSPECTION PROCESS READY (NO PROBE)
4 MILLING HOLDERS BMT 85P
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
24" HYDRAULIC THROGH HOLE CHUCK
3 TOWER SIGNAL LIGHT
(2) STEADY REST BRACKET PREPERATION
(1) HYDRAULIC OPEN CLOSE STEADY REST TOW ALONG
HYUNDAI WIA KL7000LY/3000 CNC Multi-Tasking Turning Center, Year: 2022, Used. Features milling, Y-Axis, 47.2" swing, 36.2" turn diameter, 128" turn length, 60 hp, 1,500 RPM spindle, 4 milling holders, FANUC 31i-B CNC. Machine weight: 54,013 lb.
Imperial
| Swing Over Bed | 47.2" |
| Turning Diameter | 36.2" |
| Turning Length | 128" |

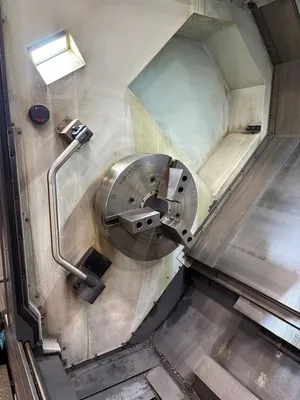

| Chuck Size 1 | 24" |
| Spindle Nose 1 | A1 - 15 |
| Spindle Bore Diameter 1 | 7.1" |
| Bar Capacity 1 | 6.5" |
| Spindle Speeds 1 | 1,500 RPM |
| Spindle Horsepower 1 | 60 hp |
| X1 - Axis Travel | 19.7" |
| Z1 - Axis Travel | 129" |
| Y1 - Axis Travel | 8.7" |
| C - Axis Indexing 1 | 0.001 |
| Rapid Traverse Rate - X1 | 472 ipm |
| Rapid Traverse Rate - Z1 | 472 ipm |
| Rapid Traverse Rate - Y1 | 394 ipm |

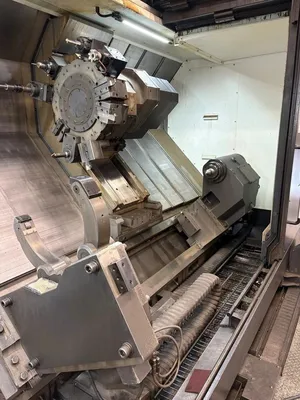

| Turret Tool Positions 1 | 12 station |
| Turret Rotary Tool Speeds 1 | 3,000 RPM |
| Turret Rotary Tool Horse Power 1 | 15 hp |
| Tailstock Quill Diameter | 7.1" |
| Tailstock Taper | MT 6 |
| Tailstock Quill Travel | 7.9" |
| Programmable Tailstock | 'Yes' |
| Tailstock Travel | 126 |
| Machine Weight | 54,013 lb |
| Control | CNC (FANUC 32IB CNC COLOR CONTROL) |
| Weight | 17700.00 |
FANUC 31i-B CNC CONTROLLER
MANUAL GUIDE I CONVERSATIONAL PROGRAMMING
PROBE INSPECTION PROCESS READY (NO PROBE)
4 MILLING HOLDERS BMT 85P
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
24" HYDRAULIC THROGH HOLE CHUCK
3 TOWER SIGNAL LIGHT
(2) STEADY REST BRACKET PREPERATION
(1) HYDRAULIC OPEN CLOSE STEADY REST TOW ALONG
