DOOSAN PUMA 2600SY CNC UNIVERSAL LATHE WITH MILLING, Y AXIS & SUB SPINDLE
Have one to sell?
ConditionUsed
1 available
2011 DOOSAN PUMA 2600SY CNC Lathe with Y-axis & sub spindle, featuring 30.7" swing and 14.8" turning diameter. Equipped with 10"/8" hydraulic chucks, FANUC control, and chip conveyor. Ideal for high-precision multi-axis machining at 3,500 RPM.
10" 3 JAW HYDRAULIC CHUCK MAIN SPINDLE

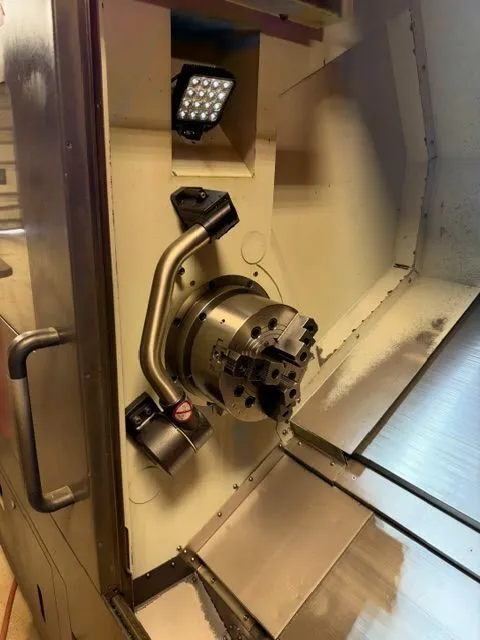

8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER AN CONVEYOR
CHIP CONVEYOR

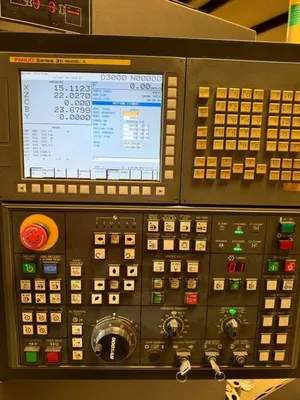

FANUC I CNC COLOR CONTROL
AUTO TOOL PRESETTER

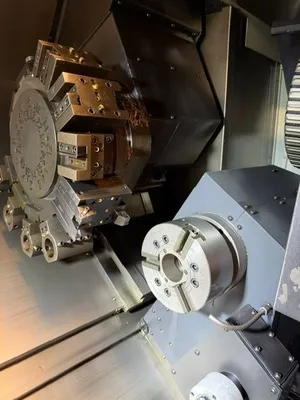

(2) OD LIVE HOLDERS
(1) ID LIVE HOLDER
ALL STANDARD STATIC TOOL HOLDERS & WEDGE BLOCKS
2011 DOOSAN PUMA 2600SY CNC Lathe with Y-axis & sub spindle, featuring 30.7" swing and 14.8" turning diameter. Equipped with 10"/8" hydraulic chucks, FANUC control, and chip conveyor. Ideal for high-precision multi-axis machining at 3,500 RPM.
Imperial
| Swing Over Bed | 30.7" |
| Turning Diameter | 14.8" |
| Turning Length | 28.5" |
| Chuck Size 1 | 10" |
| Spindle Nose 1 | A2 - 8 |
| Spindle Bore Diameter 1 | 3.4" |
| Bar Capacity 1 | 3" |
| Spindle Speeds 1 | 3,500 RPM |
| Spindle Horsepower 1 | 30 hp |
| Chuck Size 2 | 8" |
| Spindle Nose 2 | A 2 -6 |
| Spindle Bore Diameter 2 | 2.5" |
| Bar Capacity 2 | 2" |
| Spindle Speeds 2 | 5,000 RPM |
| Spindle Horsepower 2 | 15 hp |
| X1 - Axis Travel | 10.2" |
| Z1 - Axis Travel | 32.7" |
| Y1 - Axis Travel | 4.1" |
| C - Axis Indexing 1 | 0.001 |
| C - Axis Indexing 2 | 0.001 |
| W - Axis Travel Sub Spindle | 29" |
| Rapid Traverse Rate - X1 | 1181 ipm |
| Rapid Traverse Rate - Z1 | 1181 ipm |
| Rapid Traverse Rate - Y1 | 393 ipm |
| Turret Tool Positions 1 | 1224 station |
| Turret Rotary Tool Speeds 1 | 5,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.5 hp |
| Machine Weight | 16,100 lb |
| Control | CNC (FANUC 31i - A CNC COLOR CONTROL) |
| Weight | 0.00 |
10" 3 JAW HYDRAULIC CHUCK MAIN SPINDLE
8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER AN CONVEYOR
CHIP CONVEYOR
FANUC I CNC COLOR CONTROL
AUTO TOOL PRESETTER
(2) OD LIVE HOLDERS
(1) ID LIVE HOLDER
ALL STANDARD STATIC TOOL HOLDERS & WEDGE BLOCKS
