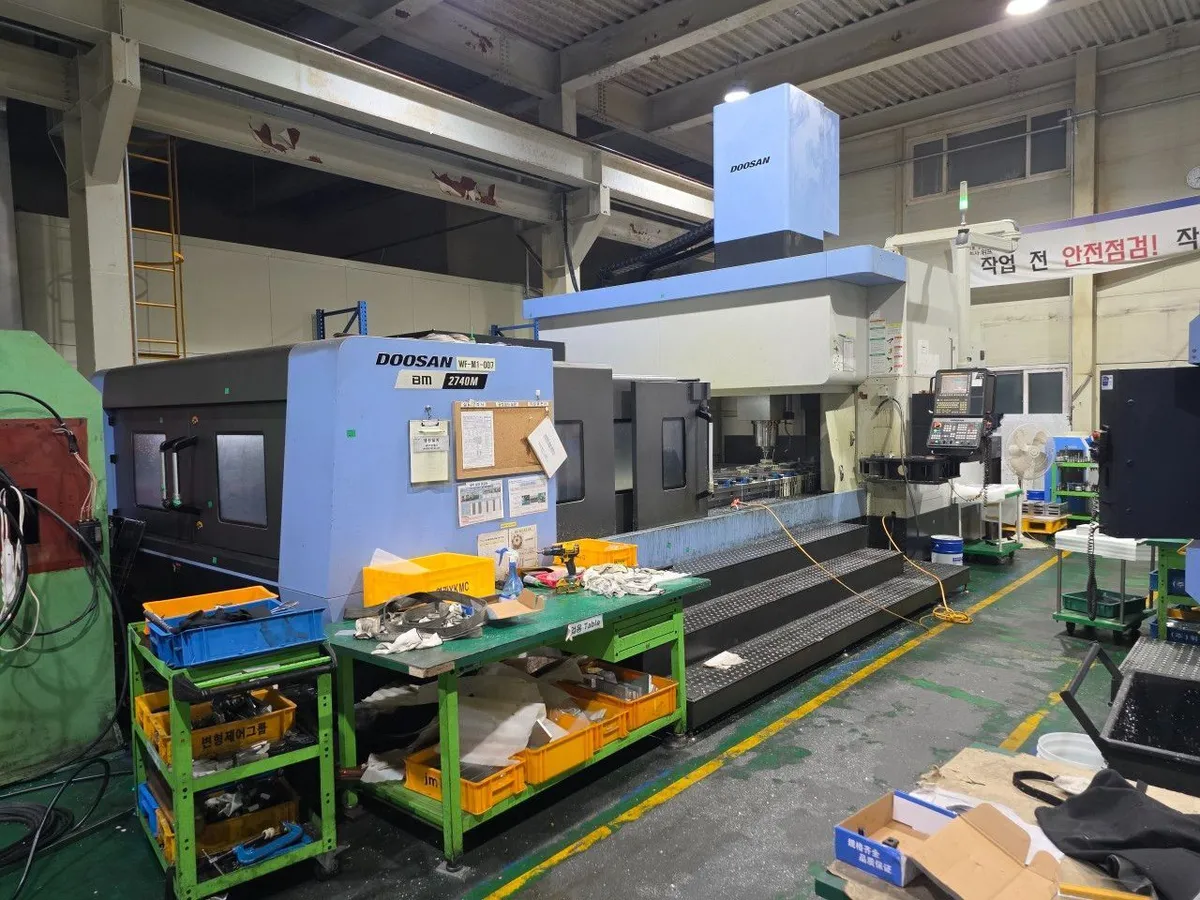

2017 DOOSAN BM 2740M CNC BRIDGE TYPE VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2017 Doosan BM2740M CNC bridge-type vertical machining center. A used machine suited to demanding machining operations.

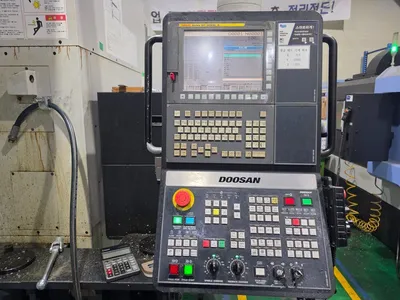

FANUC SERIES 31I-B CNC COLORCONTROL
DISTANCE BETWEEN COLUMNS 106.3"

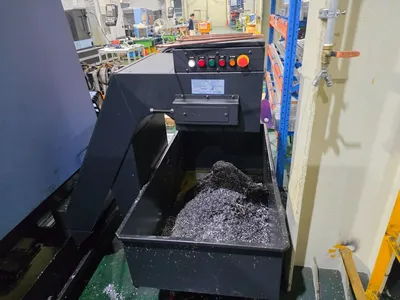

CHIP CONVEYOR
XYZ SCALES
SPLASH GUARD

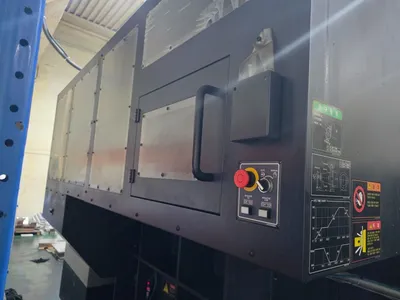

FULL COVER ENCLOSURE

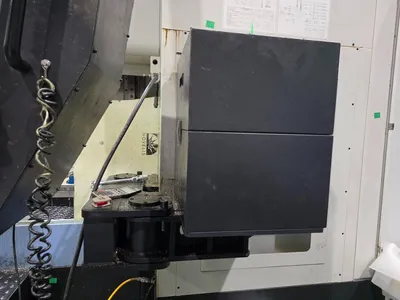

90 DEGREE ANGLE HEAD
COOLANT THRU SPINDLE
SMOOTH BACKLASH COMPENSATION
AICCII DSQI 200 BLOCK
RIGID TAPPING
TOOL NOSE RADIUS, CUSTOM MACRO
USB MEMORY INTERFACE, EMBEDED ETHERNET
640 METER OF MEMORY, 500 REGISTERED PROGRAMS
2017 Doosan BM2740M CNC bridge-type vertical machining center. A used machine suited to demanding machining operations.
Imperial
| Number Of Tables / Pallets | 1 |
| Table-L | 157.5" |
| Table-W | 98.4" |
| Weight on Table | 33,068 lb |
| Spindle Nose to Table Top | 5.9"" ~ 39.37" |
| X - Axis Travel | 157.5" |
| Y - Axis Travel | 106.3" |
| Z - Axis Travel | 31.5" |
| Rapid Traverse Rate - X | 475 in/min. |
| Rapid Traverse Rate - Y | 630 in/min. |
| Rapid Traverse Rate - Z | 630 in/min. |
| Cutting Feed Rate | 0 in/min. |
| Spindle Speed | 12,000 RPM |
| Spindle Taper | 50 |
| Number of Gear Ranges | 2 |
| Main Motor | 40 hp |
| Automatic Tool Changer | 40 |
| Tool Diameter | 4.9", 8.7" |
| Tool Length | 15.7" |
| Tool Weight | 40 lb |
| Machine Weight | 105,820 lb |
| Control | CNC (FANUC 32I B CNC COLOR CONTROL) |
| Weight | 64000.00 |
FANUC SERIES 31I-B CNC COLORCONTROL
DISTANCE BETWEEN COLUMNS 106.3"
CHIP CONVEYOR
XYZ SCALES
SPLASH GUARD
FULL COVER ENCLOSURE
90 DEGREE ANGLE HEAD
COOLANT THRU SPINDLE
SMOOTH BACKLASH COMPENSATION
AICCII DSQI 200 BLOCK
RIGID TAPPING
TOOL NOSE RADIUS, CUSTOM MACRO
USB MEMORY INTERFACE, EMBEDED ETHERNET
640 METER OF MEMORY, 500 REGISTERED PROGRAMS
