2024 DOOSAN PUMA DNT 2600M CNC UNIVERSAL TURNING CENTER WITH MILLING
Have one to sell?
ConditionUsed
1 available

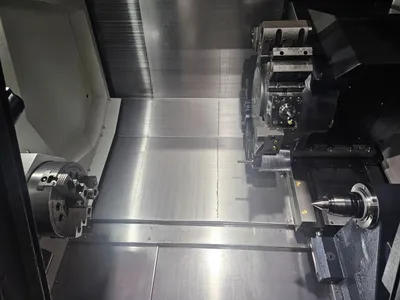

DOOSAN PUMA DNT 2600M available, a 2024 model CNC universal turning and milling center. This used 2-axis and 3-axis lathe from renowned manufacturer DOOSAN is ideal for precise and efficient machining tasks.

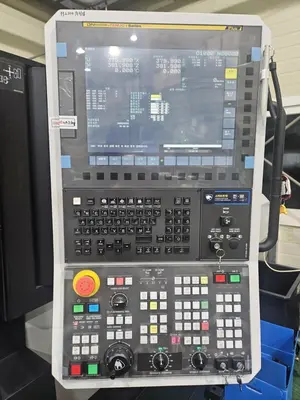

FANUC SERIES I PLUS CNC CONTROL

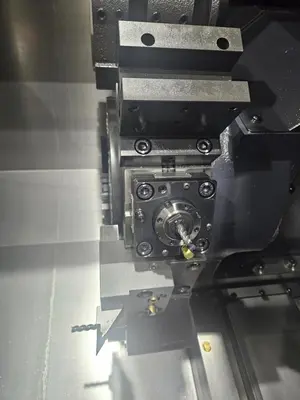

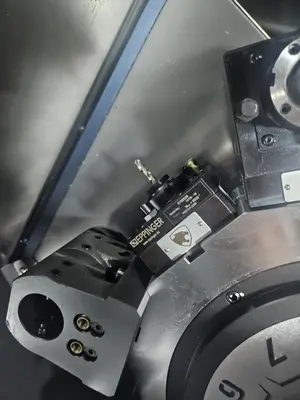

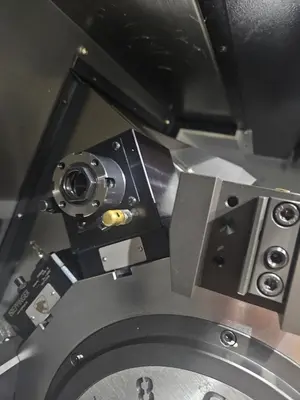

(2) O.D ROTARY HEADS
(2) I.D. ROTARY HEADS

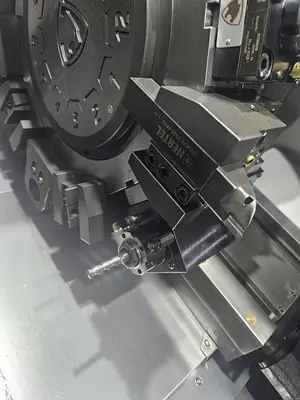

STANDARD STATIC HOLDERS
TOOL PRESETTER

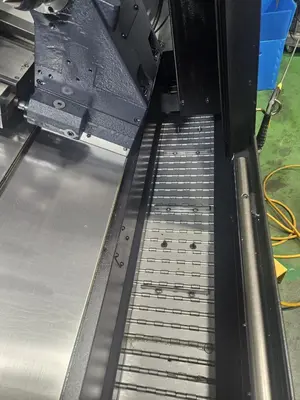

CHIP CONVEYOR

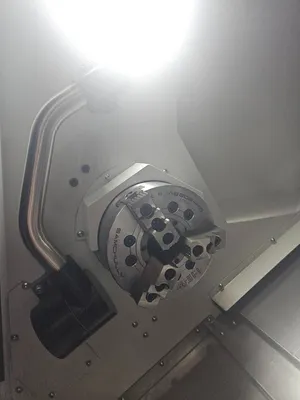

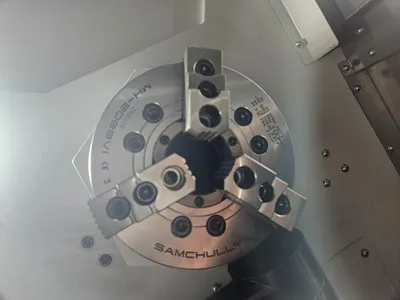

8" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER

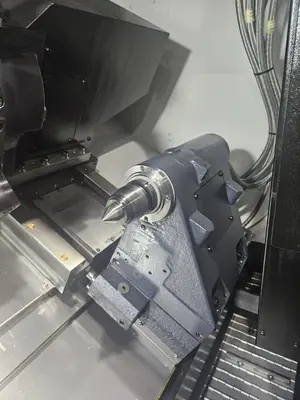

PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
161 CUTTING HOURS
DOOSAN PUMA DNT 2600M available, a 2024 model CNC universal turning and milling center. This used 2-axis and 3-axis lathe from renowned manufacturer DOOSAN is ideal for precise and efficient machining tasks.
Imperial
| Swing Over Bed | 25.6" |
| Machining Length | 25.9" |
| Distance Between Centers | 27" |
| Turning Diameter, Shaft Diameter | 16.1" |
| Distance Between Spindles | 0" |
| Chuck Size 1 | 8" |
| Spindle Nose 1 | A2 - 6 |
| Spindle Bore Diameter 1 | 3.1" |
| Spindle Bar Capacity 1 | 2.6" |
| Spindle Speeds 1 | 4,500 RPM |
| Spindle Horsepower 1 | 34.9 hp |
| X1 - Axis Travel | 10.2" |
| Z1 - Axis Travel | 26.8" |
| C1 - Axis Travel | .001 |
| W - Axis Travel Sub Spindle | 0 |
| Rapid Traverse Rate - X1 | 945 in/min. |
| Rapid Traverse Rate - Z1 | 1,181 in/min. |
| Rapid Traverse Rate - C | 220 |
| Spindle Torque | 459 |

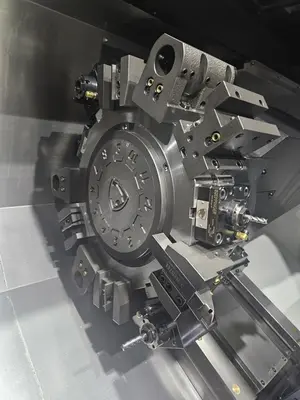

| Turret Configuration 1 | 12 |
| Turret Rotary Tool Spindle Speed 1 | 6,000 RPM |
| Turret Rotary Tool Horse Power 1 | 7.4 hp |
| Tailstock Quill Diameter | 3.9" |
| Tailstock Taper | MT 5 |
| Tailstock Quill Travel | 3.9" |
| Programmable Tailstock | YES |
| Tailstock Travel | 26.8" |
| # Axis | 3 |
| Bar Capacity | 2.6" |
| Tailstock | YES |
| Live Tooling | 'Yes' |
| Sub Spindle | NO |
| Control | CNC (FANUC SERIES I PLUS CNC COLOR CONTROL) |
| Weight | 0.00 |
FANUC SERIES I PLUS CNC CONTROL
(2) O.D ROTARY HEADS
(2) I.D. ROTARY HEADS
STANDARD STATIC HOLDERS
TOOL PRESETTER
CHIP CONVEYOR
8" 3-JAW HYDRAULIC CHUCK
HYDRAULIC CHUCK CLAMP CONFIRMATION
SIGNAL TOWER
PROGRAMABLE BODY AND QUILL TAILSTOCK
USB PORT & ETHERNET PORT FOR DNC OPERATION
161 CUTTING HOURS
